Java.use(better, Scala); S4(E3) 15パズル
#Scalaの栞
◉ Java.use(better, Scala); Season4(Episode1) 15パズル
変数を介して値を設定する

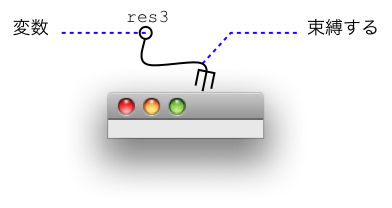

ときに、res3 とは何でしょうか。そこで、型を確認すると、
scala> :type res3 scala.swing.MainFrame
その変数を束縛している対象は、ウインドー MainFrame だと分ります。res3 は、隠れたウインドーを参照するための、隠れた変数です。というのも、対話形式では、実行した結果を後で参照できるように、隠れた変数が順に(res0, res1, ...)用意されるからです。

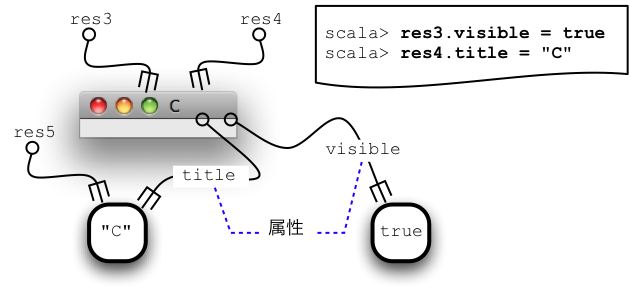

隠れた変数 res3 は、ウインドーに束縛されます。それなら、res3 を介して値を設定すると、隠れたウインドーが見えるようになるはずです。そこで、
scala> res3.visible = true
変数 res3 を介して、ウインドーの属性 visible に値 true を設定すると、ウインドーが現れます。このときの値 true は、真を表わす論理値です。同様に、
scala> res3.title = "A"
変数 res3 を介して、ウインドーの属性 title に値 "A" を設定すると、それがウインドーのタイトルに表示されます。二重引用符で囲まれた "A" は、文字列を表わします。すると、タイトルが違うのでウインドーを区別できます。
一般に、属性に値を設定(属性値を変更)するときには、次の書式に従います。
scala> オブジェクト.属性 = 値
この二重引用符には意味があります。というのも、それがないと、変数やモジュールなどと解釈されるからです。それを二重引用符で括ると「文字の並び」をそのまま解釈して欲しいという利用者の意図が、コンピューターに伝わります。
文字列のように、変数を介する必要がない、オブジェクトそのものを表現したものをリテラル〔literal〕と呼びます。そして、意味のあるオブジェクトはどれも、リテラルに帰着します。
変数を介して値を獲得する
変数を入力すると、その値が出力されます。これは、変数を評価したときに、その変数が束縛されている対象(オブジェクト)が得られるからです。

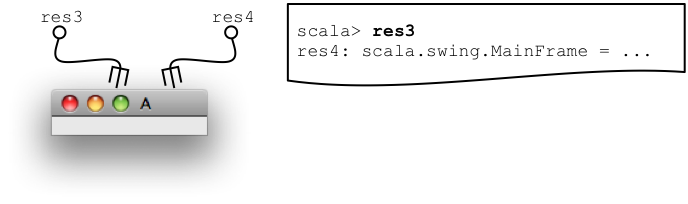

ときに、変数 res3 の値(型ではなく)は何でしょうか。変数 res3 を評価すると、その変数が束縛されているウインドーが得られます。そして、入力した変数を評価した結果として、得られたウインドーの情報が出力されます。このとき、
scala> res3 res4: scala.swing.MainFrame = scala.swing.Frame$$anon$1[frame2,0,22,128x37,layout=java.awt.BorderLayout,title=A,resizable,normal,defaultCloseOperation=HIDE_ON_CLOSE,rootPane=javax.swing.JRootPane[,0,22,128x15,layout=javax.swing.JRootPane$RootLayout,alignmentX=0.0,alignmentY=0.0,border=,flags=449,maximumSize=,minimumSize=,preferredSize=],rootPaneCheckingEnabled=true]
変数 res3 を評価した結果を参照するために、また新たな変数 res4 が用意されます。res4 で始まる出力から、設定されたタイトル title=A を確認できます。このとき、2つの変数 res3 および res4 はどちらも、同じウインドーに束縛されます。それが事実なら、
scala> res4.title = "C"
変数 res3 に代えて、変数 res4 を介しても、タイトルを変更できるはずです。変数 res4 に代えて、変数 res3 を介して、その属性値を確認すると、

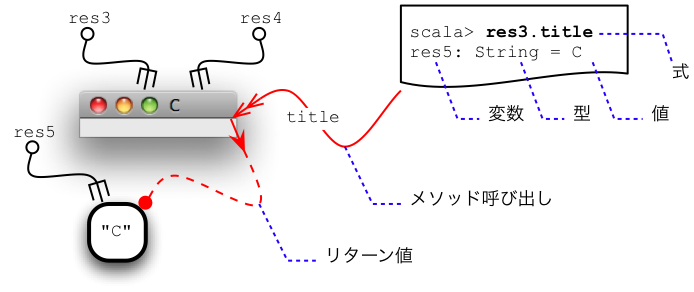

scala> res3.title res5: String = C 20131210031803
文字列 "C" が得られます。ここでも、その結果を参照するために、また新たな変数 res5 が用意されます。このとき、単純な文字列と複雑なウインドーとの間に、本質的な違いはありません。どちらも一人前のオブジェクトです。
変数 res5 res0 --------------------------------------------------- 型 String scala.swing.MainFrame 値 C scala.swing.Frame$$anon$1[frame0,...]
一般に、属性の値を獲得(属性値を参照)するときには、次の書式に従います。
scala> オブジェクト.属性
変数: 型 = 値
変数 res5 の型は文字列 String で、その値は文字列 C です。また、2つの変数 res3 および res4 がどちらも、同じウインドーに束縛される事実は、
scala> res3 == res4 res6: Boolean = true
でも確認できます。ここでも、また新たな変数 res6 が用意され、その型は論理型 Boolean で、その値は真を表わす true だと分ります。文字列と同様に、true もリテラルのひとつで、すでに何度も登場しています。
Created: 2012/12/18|Last updated: 2013/12/10 16:13:34
Scala.use(better)《tips432》Hexothello
App15Window.scala
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- import swing._ object App15Window extends MainFrame { val version = App15Window .getClass.getName+": #1.0.02 J" // ---------------------------------------- title = "15 puzzle" contents = new App15View(new Dimension(200,200)) peer.setLocationRelativeTo(null) } // ---------------------------------------- class App15View(size: Dimension) extends FlowPanel { preferredSize = size new Publisher { import swing.event.MouseClicked reactions += { case MouseClicked(_,point,_,_,_) => update(point) } }.listenTo(mouse.clicks) import scala.collection.mutable.ArrayBuffer val tiles = ArrayBuffer.empty[Tile] 0 to 14 foreach { i => tiles += Tile(i%4, i/4, i+1) } val nullTile = NullTile(3,3) tiles += nullTile shuffle(100) // ---------------------------------------- import java.awt.Point def update(point: Point) = detect(point) match { case Some(tile: Tile) => move(tile); repaint case None => } def detect(point: Point) = { tiles find { _.contains(point) } match { case Some(tile) => ;print(tile) if (tile.isInContactWith(nullTile)) Some(tile) else None case None => } } override def paintComponent(g: Graphics2D) = tiles foreach { _.paint(g) } def shuffle(count: Int) { val random = new scala.util.Random() 0 to count foreach { e => move(tiles(random.nextInt(15))) } } def move(tile: Tile) = tile.swap(nullTile) }
Apple.scala
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. * ---------------------------------------- $ scalac -encoding "SJIS" -d bin src/{Apple,AppWindow,App15Window,Shape,Game}.scala $ date; scala -cp bin cherry.pie.application * ---------------------------------------- 2013年 11月13日 水曜日 17時58分00秒 JST ---------------------------------------- cherry.pie.application$: #1.0.03 cherry.pie.appWindow$: #1.0.03 cherry.pie.Shape$: #1.0.03 cherry.pie.Game$: #1.0.03 ---------------------------------------- (16,16) -> (0,0) (45,16) -> (2,0) (74,17) -> (4,0) (31,41) -> (1,3) (57,40) (45,68) -> (2,6) $ */ package cherry.pie // ---------------------------------------- import swing._ object <span style="color: #ff5252">application</span> extends SimpleSwingApplication { val version = application .getClass.getName+": #1.0.03" // ---------------------------------------- println("-"*40) println(application.version) println(appWindow.version) println(Shape.version) println(Game.version) println("-"*40) def top = appWindow // ---------------------------------------- App15Window.visible = true }
AppWindow.scala
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- import swing._ object appWindow extends MainFrame { val version = appWindow .getClass.getName+": #1.0.03" // ---------------------------------------- title = "Honeycomb" contents = new View(new Dimension(200,200)) peer.setLocationRelativeTo(null) } // ---------------------------------------- class View(size: Dimension) extends FlowPanel { preferredSize = size new Publisher { import swing.event.MouseClicked reactions += { case MouseClicked(_,p,_,_,_) => update(p) } }.listenTo(mouse.clicks) // ---------------------------------------- import scala.collection.mutable.ArrayBuffer val tiles = ArrayBuffer.empty[Honeycomb] tiles += Honeycomb(0,0) tiles += Honeycomb(2,0) tiles += Honeycomb(4,0) tiles += Honeycomb(1,3) tiles += Honeycomb(2,6) // ---------------------------------------- import java.awt.Point def update(point: Point) { ;print("(%d,%d)" format (point.x, point.y)) tiles find { _.contains(point) } match { case Some(tile) => ;print(" -> "+tile) case None => } ;println } // ---------------------------------------- override def paintComponent(g: Graphics2D) = tiles foreach { _.paint(g) } }
Game.scala
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- object Game { val version = Game .getClass.getName+": #1.0.03" } // ---------------------------------------- import java.awt._ object NullTile { def apply(x0: Int, y0: Int) = new Tile(x0, y0, 0) { override def paint(g: Graphics2D) = Rectangle(x*width, y*height, width, height) .paint(g, Color.lightGray) } } object Tile { def apply(x: Int, y: Int, n: Int) = new Tile(x, y, n) } class Tile(var x0: Int, var y0: Int, n: Int) { def x = x0 def x_=(x: Int) { x0 = x } def y = y0 def y_=(y: Int) { y0 = y } override def toString = "(%d,%d)%d" format (x,y,n) val (width, height) = (50, 50) val (px, py) = (x*width, y*height) val rect = Rectangle(px, py, width, height) val (dx, dy) = (4, 15) val symb = Symbol(n+"", px+dx, py+dy) def paint(g: Graphics2D) { rect.paint(g) symb.paint(g) } def contains(p: Point) = rect.contains(p) def isInContactWith(that: Tile) = { val a = x - that.x val b = y - that.y a*a + b*b == 1 } def swap(that: Tile) = { val (this_x, this_y) = (x, y) this.move(that.x, that.y) that.move(this_x, this_y) } def move(x: Int, y: Int) { this.x = x; this.y = y val (px, py) = (x*width, y*height) rect.move(px, py) symb.move(px+dx, py+dy) } } // ---------------------------------------- object Honeycomb { def apply(x: Int, y: Int) = new Honeycomb(x, y) } class Honeycomb(x0: Int, y0: Int) { override def toString = "(%d,%d)" format (x0,y0) val peer = Hexagon(x0, y0) def contains(p: Point) = peer.contains(p) def paint(g: Graphics2D) = peer.paint(g, Color.green) }
Shape.scala
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- object Shape { val version = Shape .getClass.getName+": #1.0.03" } // ---------------------------------------- import java.awt._ trait Shape { def paint(g: Graphics2D) def contains(p: Point): Boolean def move(x: Int, y: Int) {} } // ---------------------------------------- abstract class Geometry extends Shape { def paint(g: Graphics2D, fillColor: Color) def paint(g: Graphics2D): Unit = paint(g, defaultFillColor) def defaultFillColor = Color.white def defaultDrawColor = Color.black } // ---------------------------------------- object Hexagon { def apply(x: Int, y: Int) = new Hexagon(x, y) } class Hexagon(var x0: Int, var y0: Int) extends Geometry { val (dx,dy,scale) = (7,4,2) import scala.collection.immutable.List val vertices = List*1 def nPoints = vertices.length val bounds = points(scale) def xPoints = bounds map { case (x,_) => x } def yPoints = bounds map { case (_,y) => y } def points(scale: Int) = { import scala.collection.mutable.ListBuffer val buf = ListBuffer.empty[(Int,Int)] vertices foreach { case (x,y) => val px = (x0+x)*dx*scale + x0 val py = (y0+y)*dy*scale + y0 - y0/3 buf += *2 } buf.toArray } // ---------------------------------------- def paint(g: Graphics2D, fillColor: Color) { g.setColor(fillColor) g.fillPolygon(xPoints, yPoints, nPoints) g.setColor(defaultDrawColor) g.drawPolygon(xPoints, yPoints, nPoints) } def contains(p: Point) = { val (x,y) = (1,2) val px = (x0+x)*dx*scale + x0 val py = (y0+y)*dy*scale + y0 - y0/3 val x1 = px - p.x val y1 = py - p.y val xs = dx*scale x1*x1 + y1*y1 <= xs*xs } } // ---------------------------------------- object Rectangle { def apply(x: Int, y: Int, width: Int, height: Int) = (new Rectangle)(x, y, width, height) } class Rectangle extends Geometry { var peer: java.awt.Rectangle = _ def apply(x: Int, y: Int, width: Int, height: Int) = { peer = new java.awt.Rectangle(x, y, width, height); this } def paint(g: Graphics2D, fillColor: Color) { val (x, y) = (peer.x, peer.y) val (width, height) = (peer.width, peer.height) g.setColor(fillColor) g.fillRect(x, y, width, height) g.setColor(defaultDrawColor) g.drawRect(x, y, width, height) } def contains(p: Point) = peer.contains(p) override def move(x: Int, y: Int) = peer.setLocation(x,y) } // ---------------------------------------- object Symbol { def apply(s: String, x: Int, y: Int) = new Symbol(s, x, y) } class Symbol(s: String, var x: Int, var y: Int) extends Geometry { def paint(g: Graphics2D, fillColor: Color) { g.setColor(defaultDrawColor) g.drawString(s, x, y) } def contains(p: Point) = false override def move(x: Int, y: Int) = { this.x = x; this.y = y } } /* src/Shape.scala:31: error: object List is not a value val vertices = List(3,4) ^/
Scala.use(better)《tips431》Hexothello
》App15Window.scala《
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- import swing._ object App15Window extends MainFrame { val version = App15Window .getClass.getName+": #1.0.03" // ---------------------------------------- title = "15 puzzle" contents = new App15View(new Dimension(200,200)) peer.setLocationRelativeTo(null) } // ---------------------------------------- class App15View(size: Dimension) extends FlowPanel { preferredSize = size new Publisher { import swing.event.MouseClicked reactions += { case MouseClicked(_,point,_,_,_) => update(point) } }.listenTo(mouse.clicks) import scala.collection.mutable.ArrayBuffer val tiles = ArrayBuffer.empty[Tile] 0 to 14 foreach { i => tiles += Tile(i%4, i/4, i+1) } val nullTile = NullTile(3,3) tiles += nullTile shuffle(100) // ---------------------------------------- import java.awt.Point def update(point: Point) = detect(point) match { case Some(tile: Tile) => move(tile); repaint case None => } def detect(point: Point) = { tiles find { _.contains(point) } match { case Some(tile) => ;print(tile) if (tile.isInContactWith(nullTile)) Some(tile) else None case None => } } override def paintComponent(g: Graphics2D) = tiles foreach { _.paint(g) } def shuffle(count: Int) { val random = new scala.util.Random() 0 to count foreach { e => move(tiles(random.nextInt(15))) } } def move(tile: Tile) = tile.swap(nullTile) }
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. * ---------------------------------------- $ scalac -encoding "SJIS" -d bin src/{Apple,AppWindow,App15Window,Shape,Game}.scala $ date; scala -cp bin cherry.pie.application * ---------------------------------------- 2013年 11月 1日 金曜日 00時10分03秒 JST ---------------------------------------- cherry.pie.application$: #1.0.03 cherry.pie.appWindow$: #1.0.03 cherry.pie.Shape$: #1.0.03 cherry.pie.Game$: #1.0.03 ---------------------------------------- (1,1)4(2,1)5(2,2)7(2,3)1(3,3)13(3,2)12(3,1)3(3,0)11(2,0)10(2,1)7(2,2)1(3,2)3(3,1)11(3,0)10(2,0)7(1,0)4(0,0)2(0,1)8(0,2)6(1,2)9(2,2)3(3,2)11(3,1)10(3,0)7(2,0)4(1,0)2(0,0)8(1,0)8(1,1)5(1,2)3(2,2)11(1,2)11(0,2)9(0,1)6(0,1)0(0,0)8(1,0)5(2,0)2(2,1)1(1,1)3(0,1)8(1,1)8(1,0)2(2,0)1(2,1)3(1,1)2(0,1)8(0,0)5(1,0)1(1,1)8(2,1)2(2,1)0(3,1)7(3,0)4(2,0)3(1,0)8(1,1)2(2,1)7(2,0)8(3,0)3(3,1)4(2,1)8(1,1)7(1,2)9(2,2)11(2,2)0(3,2)10(3,1)8(2,1)7(1,1)9(1,2)11(1,2)0(0,2)6(0,1)5(1,1)11(1,2)6(2,2)10(2,1)9(1,1)6(0,1)11(0,2)5(1,2)10(1,1)11(2,1)6(3,1)7(3,2)8(3,3)12(2,3)13(1,3)15(0,3)14(0,2)10(1,2)11(2,2)9(2,3)15(1,3)14(0,3)10(0,2)11(1,2)9(1,3)10(0,3)11(0,2)9(1,2)10(1,3)11(2,3)14(3,3)13(2,3)13(2,2)15(3,2)12(2,2)12(0,2)10(1,2)11(0,2)10(0,3)9(1,3)14(2,3)15(2,3)0(3,3)13$ */ package cherry.pie // ---------------------------------------- import swing._ object <span style="color: #ff5252">application</span> extends SimpleSwingApplication { val version = application .getClass.getName+": #1.0.03" // ---------------------------------------- println("-"*40) println(application.version) println(appWindow.version) println(Shape.version) println(Game.version) println("-"*40) def top = appWindow // ---------------------------------------- App15Window.visible = true }
》AppWindow.scala《
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- import swing._ object appWindow extends MainFrame { val version = appWindow .getClass.getName+": #1.0.03" // ---------------------------------------- title = "Honeycomb" contents = new View(new Dimension(250,250)) peer.setLocationRelativeTo(null) } // ---------------------------------------- class View(size: Dimension) extends FlowPanel { preferredSize = size new Publisher { import swing.event.MouseClicked reactions += { case MouseClicked(_,p,_,_,_) => update(p) } }.listenTo(mouse.clicks) // ---------------------------------------- val nullTile = NullTile(3,3) import scala.collection.mutable.ArrayBuffer val tiles = ArrayBuffer.empty[Tile] 0 to 14 foreach { i => tiles += Tile(i%4, i/4, i+1) } tiles += nullTile shuffle(100) // ---------------------------------------- import java.awt.Point def update(point: Point) = detect(point) match { case Some(tile: Tile) => move(tile); repaint case None => } def detect(point: Point) = { tiles find { _.contains(point) } match { case Some(tile) => ;print(tile) if (tile.isInContactWith(nullTile)) Some(tile) else None case None => } } def shuffle(count: Int) { val random = new scala.util.Random 0 to count foreach { _ => move(tiles(random.nextInt(15))) } } def move(tile: Tile) = tile.swap(nullTile) // ---------------------------------------- override def paintComponent(g: Graphics2D) = tiles foreach { _.paint(g) } }
》Game.scala《
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- object Game { val version = Game .getClass.getName+": #1.0.03" } // ---------------------------------------- import java.awt._ object NullTile { def apply(x0: Int, y0: Int) = new Tile(x0, y0, 0) { override def paint(g: Graphics2D) = Rectangle(x*width, y*height, width, height) .paint(g, Color.lightGray) } } object Tile { def apply(x: Int, y: Int, n: Int) = new Tile(x, y, n) } class Tile(var x0: Int, var y0: Int, n: Int) { def x = x0 def x_=(x: Int) { x0 = x } def y = y0 def y_=(y: Int) { y0 = y } override def toString = "(%d,%d)%d" format (x,y,n) val (width, height) = (50, 50) val (px, py) = (x*width, y*height) val rect = Rectangle(px, py, width, height) val (dx, dy) = (4, 15) val symb = Symbol(n+"", px+dx, py+dy) def paint(g: Graphics2D) { rect.paint(g) symb.paint(g) } def contains(p: Point) = rect.contains(p) def isInContactWith(that: Tile) = { val a = x - that.x val b = y - that.y a*a + b*b == 1 } def swap(that: Tile) = { val (this_x, this_y) = (x, y) this.move(that.x, that.y) that.move(this_x, this_y) } def move(x: Int, y: Int) { this.x = x; this.y = y val (px, py) = (x*width, y*height) rect.move(px, py) symb.move(px+dx, py+dy) } }
》Shape.scala《
/* * Copyright (c) 2010-2013, KOTSUBU-chan and/or its affiliates. * Copyright (c) 1998, Atelier-AYA. * All rights reserved. */ package cherry.pie // ---------------------------------------- object Shape { val version = Shape .getClass.getName+": #1.0.03,a" } // ---------------------------------------- import java.awt._ trait Shape { def paint(g: Graphics2D) def contains(p: Point): Boolean def move(x: Int, y: Int) } // ---------------------------------------- abstract class Geometry extends Shape { def paint(g: Graphics2D, fillColor: Color) def paint(g: Graphics2D): Unit = paint(g, defaultFillColor) def defaultFillColor = Color.white def defaultDrawColor = Color.black } // ---------------------------------------- object Rectangle { def apply(x: Int, y: Int, width: Int, height: Int) = (new Rectangle)(x, y, width, height) } class Rectangle extends Geometry { var peer: java.awt.Rectangle = _ def apply(x: Int, y: Int, width: Int, height: Int) = { peer = new java.awt.Rectangle(x, y, width, height); this } def paint(g: Graphics2D, fillColor: Color) { val (x, y) = (peer.x, peer.y) val (width, height) = (peer.width, peer.height) g.setColor(fillColor) g.fillRect(x, y, width, height) g.setColor(defaultDrawColor) g.drawRect(x, y, width, height) } def contains(p: Point) = peer.contains(p) def move(x: Int, y: Int) = peer.setLocation(x,y) } // ---------------------------------------- object Symbol { def apply(s: String, x: Int, y: Int) = new Symbol(s, x, y) } class Symbol(s: String, var x: Int, var y: Int) extends Geometry { def paint(g: Graphics2D, fillColor: Color) { g.setColor(defaultDrawColor) g.drawString(s, x, y) } def contains(p: Point) = false def move(x: Int, y: Int) = { this.x = x; this.y = y } }
Java.use(better, Scala); S4(E2) 15パズル
#Scalaの栞
◉ Java.use(better, Scala); Season4(Episode2) 15パズル
[:contents]
対話形式の意義
最初に、次のコードの断片を入力します。すると、
scala> new swing.MainFrame { visible = true } res0: scala.swing.MainFrame = scala.swing.Frame$$anon$1[frame0,0,22,128x37,layout=java.awt.BorderLayout,title=,resizable,normal,defaultCloseOperation=HIDE_ON_CLOSE,rootPane=javax.swing.JRootPane[,0,22,128x15,layout=javax.swing.JRootPane$RootLayout,alignmentX=0.0,alignmentY=0.0,border=,flags=449,maximumSize=,minimumSize=,preferredSize=],rootPaneCheckingEnabled=true]
ディスプレーの左上隅にウインドーが現れ、その情報がターミナルに出力されます。そこで、res0 で始まる出力から、その詳細を読み取ります。
まず、正式には scala.swing.MainFrame で、scala. の部分は省略可能と分ります。次に、128x37 から、ウインドーの寸法(幅x高さ)が分ります。そして、128x15 から、タイトルの部分を除いたウインドーの高さが 15(かつ、タイトルの高さが 22=37-15)と分ります。他の情報は、後述します。
では、一部を省略して入力すると、どうなるでしょうか。すると、
scala> new swing.MainFrame res1: scala.swing.MainFrame = scala.swing.Frame$$anon$1[frame1,0,22,0x0,invalid,hidden,layout=java.awt.BorderLayout,title=,resizable,normal,defaultCloseOperation=HIDE_ON_CLOSE,rootPane=javax.swing.JRootPane[,0,0,0x0,invalid,layout=javax.swing.JRootPane$RootLayout,alignmentX=0.0,alignmentY=0.0,border=,flags=449,maximumSize=,minimumSize=,preferredSize=],rootPaneCheckingEnabled=true]
ウインドーは表示されずに、res1: で始まる情報だけを出力します。ウインドーは寸法を持たない 0x0 なので、隠れて見えない hidden のが分ります。
対話形式では、利用者が「入力」したコードをコンピューターが解釈して、実行した結果に関する情報を「出力」します。つまり、入出力を介して、利用者とコンピューターが「対話」を繰り返しながら、試行錯誤によって経験を積みます。
サブコマンド :type
さらに省略すると、どうなるでしょうか。すると、
scala> new MainFrame:8: error: not found: type MainFrame new MainFrame ^
エラーメッセージを出力します。そこから原因を探ると、型 MainFrame を確認できないのが分ります。そこで、help にあったサブコマンド :type を利用して、その型を確認します。サブコマンドは、コロン「:」に続けて入力します。
scala> :type MainFrame Failed to determine type.
やはり、型を決定できません。そこで、swing. を明記すると、
scala> :type swing.MainFrame <notype>
今度は「型なし」です。そして、swing だけを確認すると、
scala> :type swing package swing
swing は、パッケージだと分ります。サブコマンド :type を利用すると、有効な型の情報が得られます。が、その型が無効なら、それこそ「形無し」です。
import
import を利用すると、正式な名前を省略できるので便利です。たとえば、
scala> import swing.MainFrame import swing.MainFrame
swing.MainFrame に代えて、これを省略した末尾の MainFrame だけで認識できます。実はこの swing.MainFrame も、scala.swing.MainFrame を省略したものです。すると、
scala> new MainFrame res3: scala.swing.MainFrame = scala.swing.Frame$$anon$1[frame2,0,22,0x0,invalid,hidden,layout=java.awt.BorderLayout,title=,resizable,normal,defaultCloseOperation=HIDE_ON_CLOSE,rootPane=javax.swing.JRootPane[,0,0,0x0,invalid,layout=javax.swing.JRootPane$RootLayout,alignmentX=0.0,alignmentY=0.0,border=,flags=449,maximumSize=,minimumSize=,preferredSize=],rootPaneCheckingEnabled=true]
今度は、同じコードの断片を入力しても、エラーメッセージを出力しません。変わらずウインドーは現れませんが、実行した結果に関する情報を出力します。
Created: 2012/12/18|Last updated: 2013/12/10 16:12:06
